Add new Application

When adding a new application for a product, PDM will color code available Subconfigurations (i.e., sub-models) based on selected MakeModel, and Year / Year range.
  1. Select a Brand and click All Products.
  2. Select Application segment.
  3. Select a product from the Catalog.
  4. Click in Add New Application.

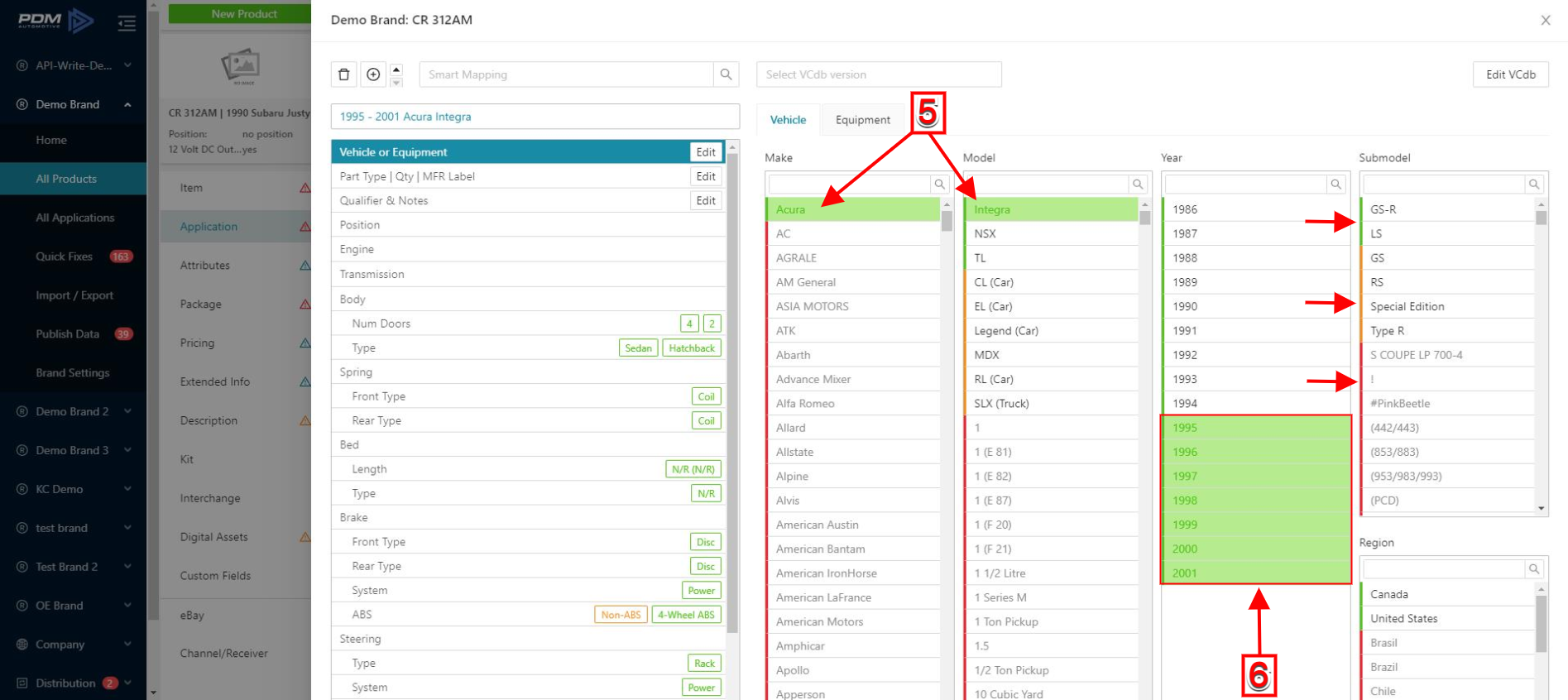

  5. Choose a Make and Model (search or choose from the list).
  6.  Select a year or click and drag over a range of years. The submodel options are now color-coded:
       Green indicates the sub-model is valid for the entire selected year range.
     I Orange indicates the sub-model is valid for the sub-selection of the selected year range.
       Red indicates the sub-model is not valid for any of the selected year ranges.


You can also choose to display Only base-vehicle valid sub-configs.

      7. Color-coding also applies to sub-configurations. For example, suppose you choose the Non-ABS option (coded I Orange > partially valid). In that case, the Year column will re-color-code itself to indicate for which specific years this sub-configuration is valid (valid only 1995-1998).



      8. Color-coding information is saved in the Application record.
