Custom Vehicle Table Overview

Custom Vehicle Table allows the user to expand the Autocare VCdb table by configuring products for the vehicles that were not officially sold in the USA, and add custom configurations to the existing vehicles in the VCdb.

There are two ways to access Custom Vehicle Tables:
  1. Application Segment
  2. Settings Section
The Custom Vehicle Tables option is an add-on. If you are interested in this, please contact us at sales@pdmautomotive.com; we'll be happy to assist you.

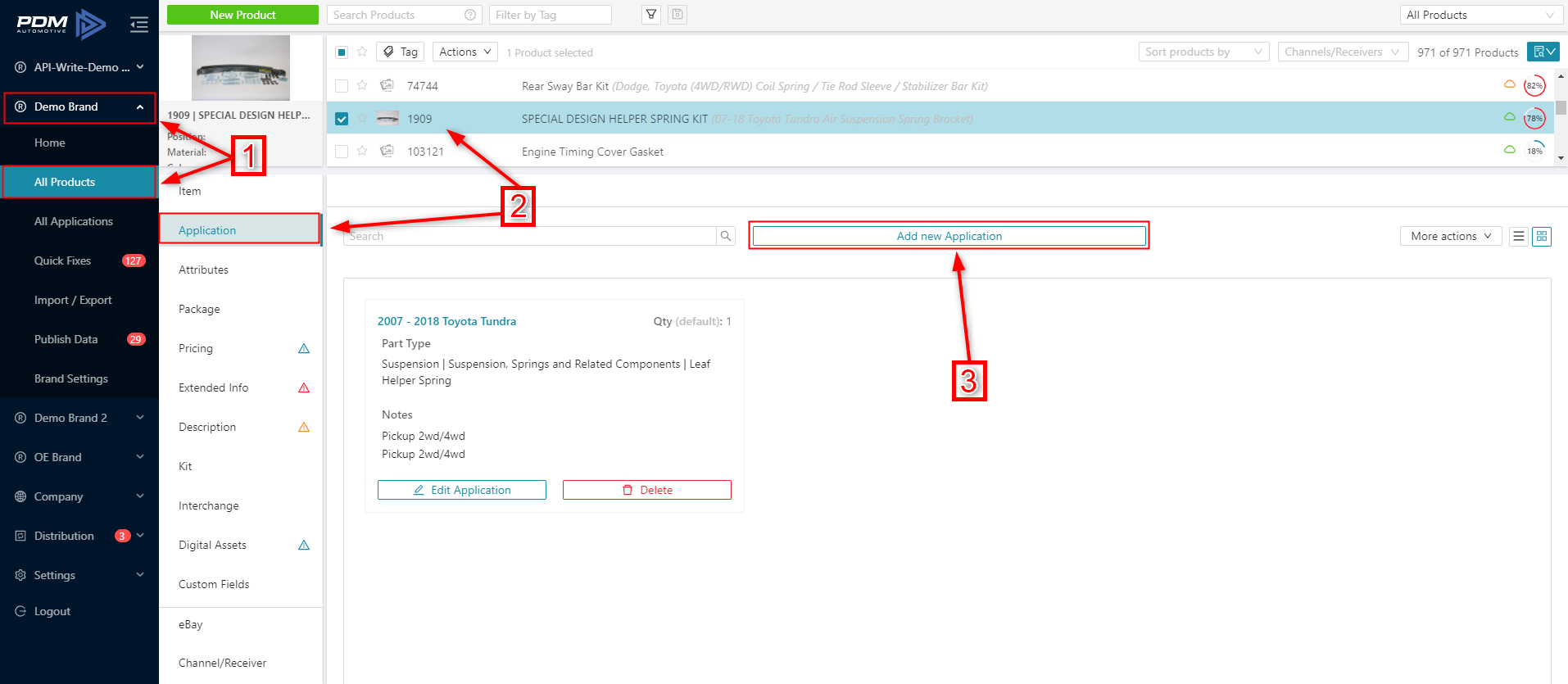

Access Custom Vehicle Table Through Application Segment

  1. Select a Brand and click All Products.
  2. Select the Application segment and choose a product from the catalog.
  3. Click the Add New Application button.

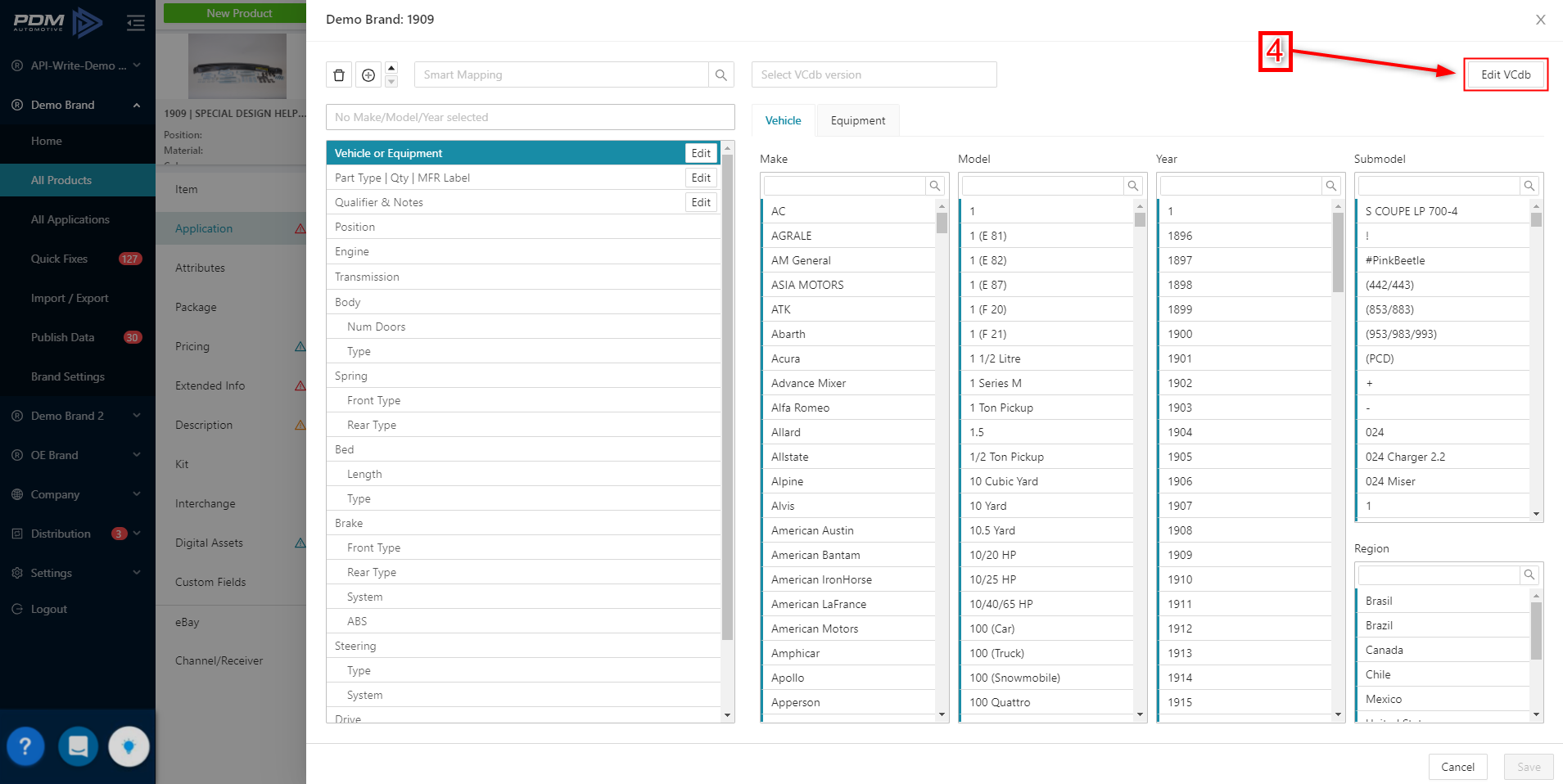

      4. A new window pops up. Click the Edit VCDB button to add or delete the custom vehicle table.

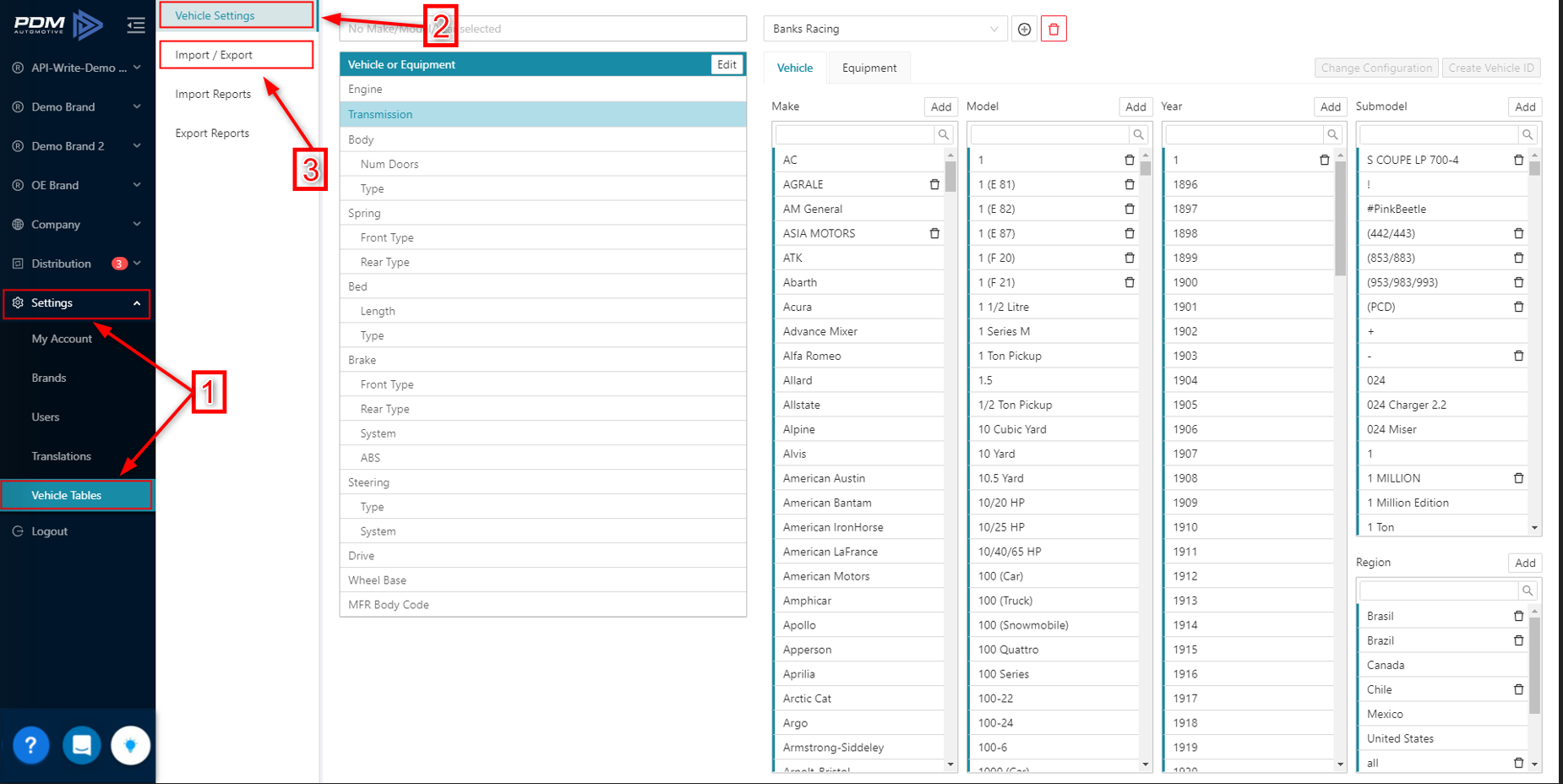

Access Custom Vehicle Table Through Settings Section

  1. Click the Settings tab and choose the Vehicle Tables submenu.
  2. Select Vehicle Settings to add new vehicles
  3. Select the Import/Export submenu to import/export the Custom Vehicle Tables




Related Articles:
  1. Custom Vehicle Table: Adding a New Custom Vehicle Table
  2. Custom Vehicle Table: Adding New Sub Configurations and Assigning to Vehicles
  3. Custom Vehicle Table: Importing/Exporting
