Export Data using Templates

Export Data using Templates

Export Data using Templates

Use Export Template to download data using templates created in Export Builder Plus. There are two methods to access Export Template:

Access to Export Template from Import/Export

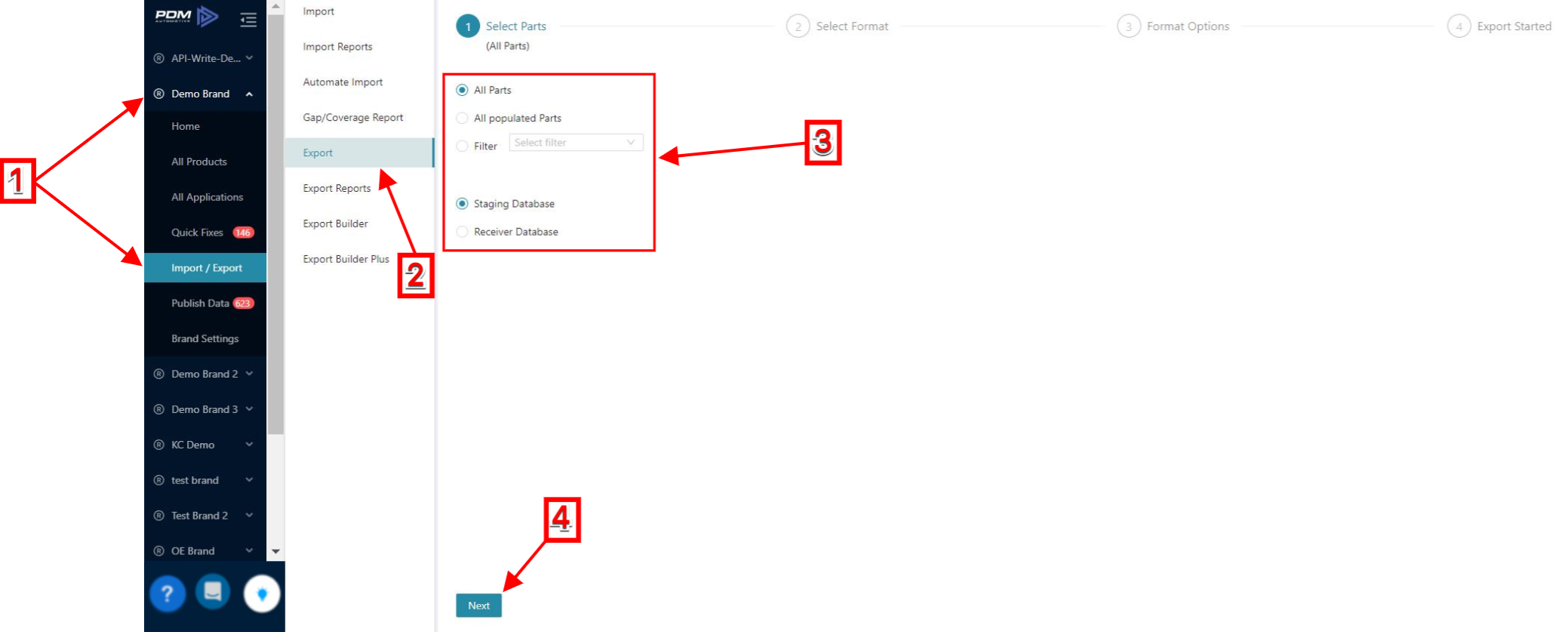

  1. Select a Brand from the main menu and click the Import/Export submenu.
  2. Click Export.
  3. Click All Parts and Select Database.
  4. Click Next.

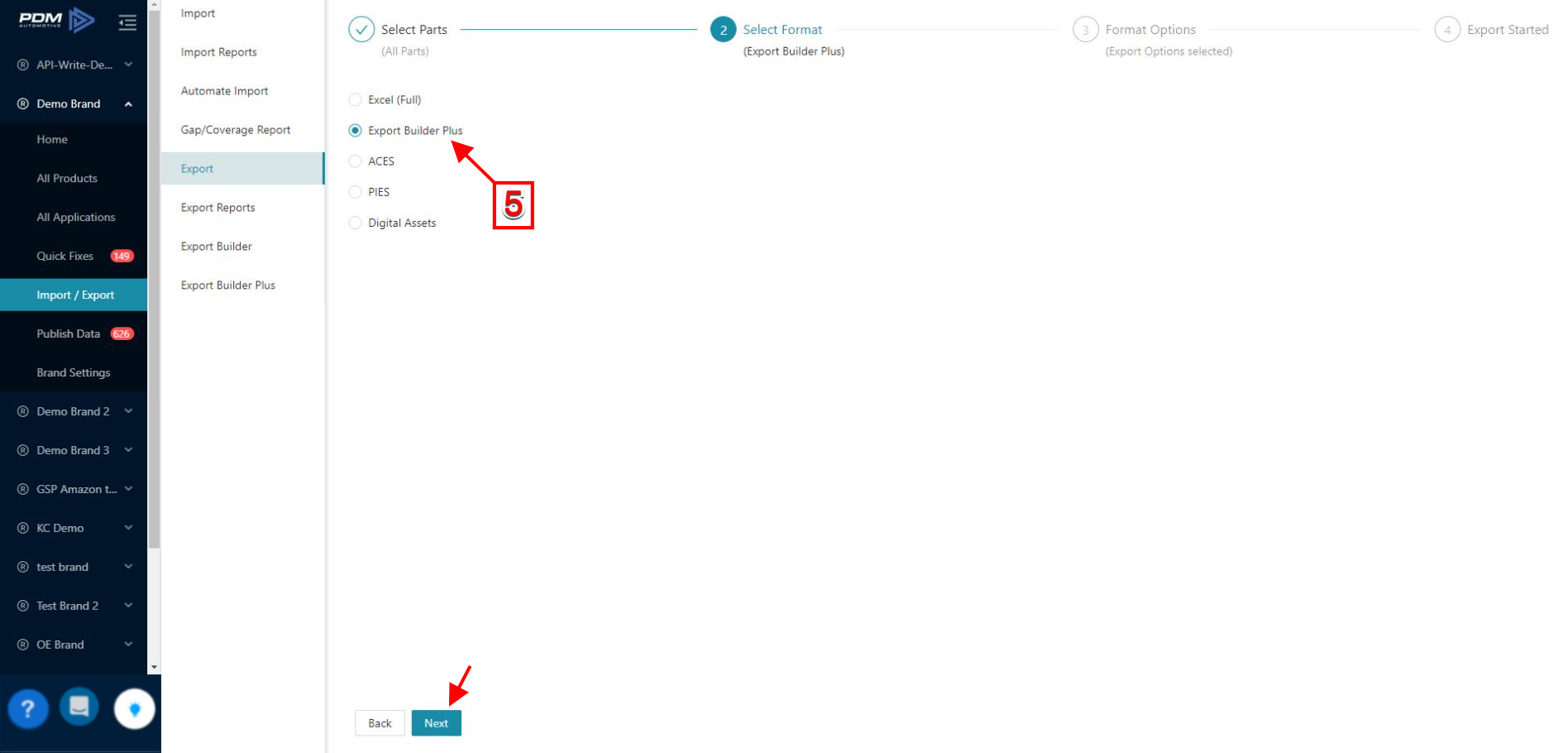

      5. Select Export Builder Plus and click Next

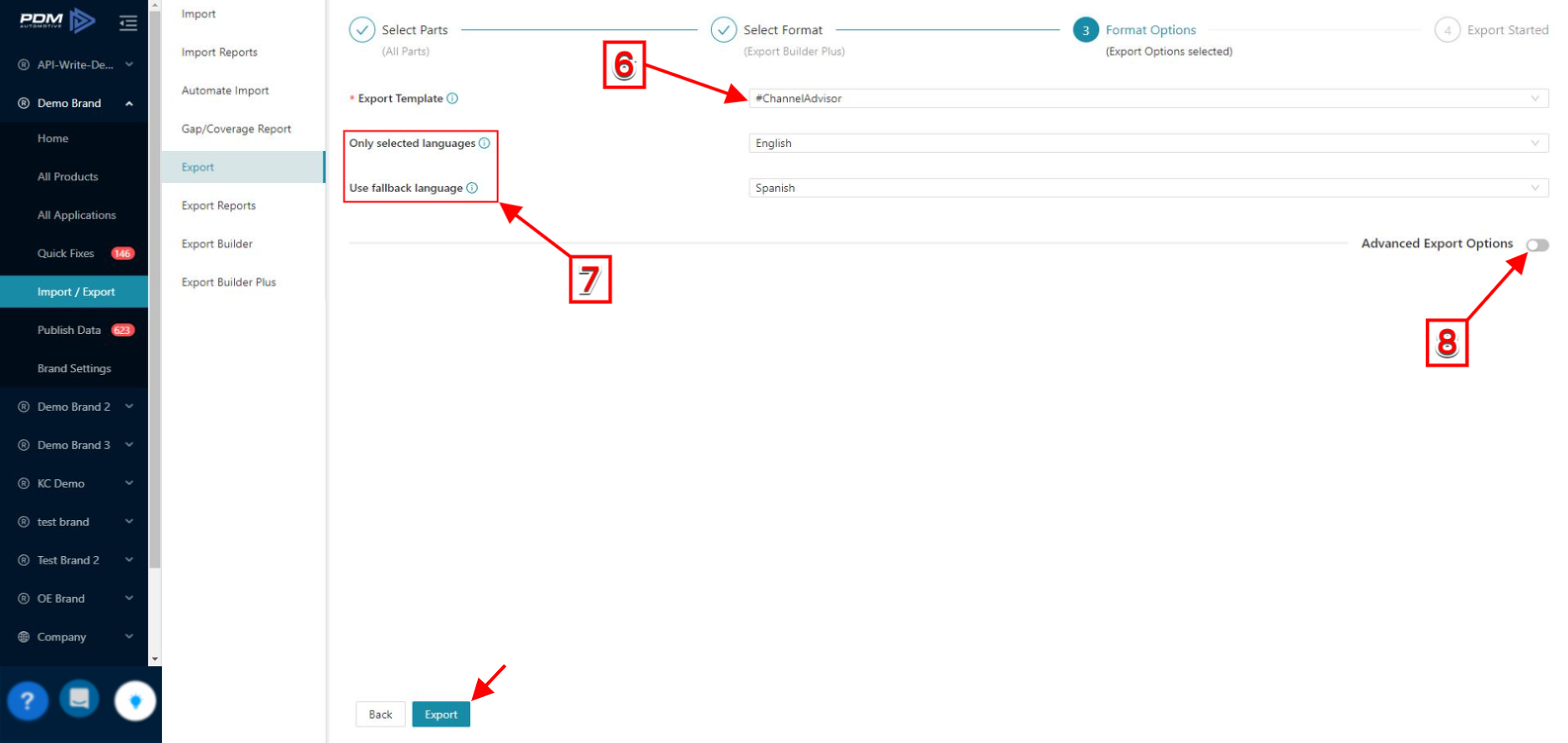

      6. Choose a template from the Export Template drop-down menu.
      7. Turn on the Advanced Export Options toggle button to access the advanced export options.
      8. Expand your ACES file based on the selected subconfiguration(s). By default, if you do not select any value when configuring ACES, all values are included. This Export Option will include all values if none is selected.

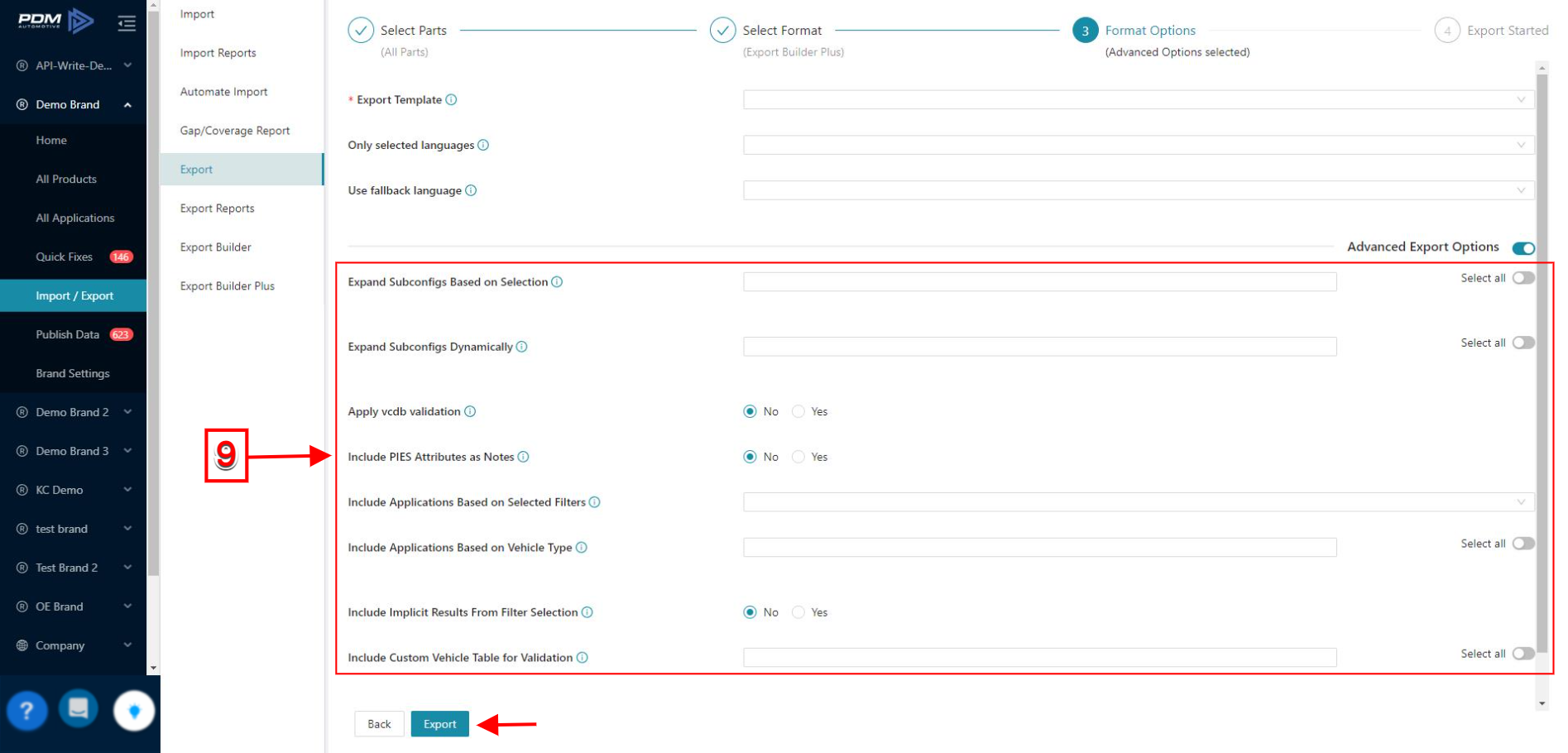

      9. Expand your ACES file dynamically to always include values for subconfigurations that are used with at least one Make Model Year. This applies on a base vehicle (MMY) level. E.g. if you have selected a transmission for a 2005 Ford Mustang for one product, all other application records with the same base vehicle will also include transmission information.
      10. Use the Select All toggle switch to select all sub-configurations.

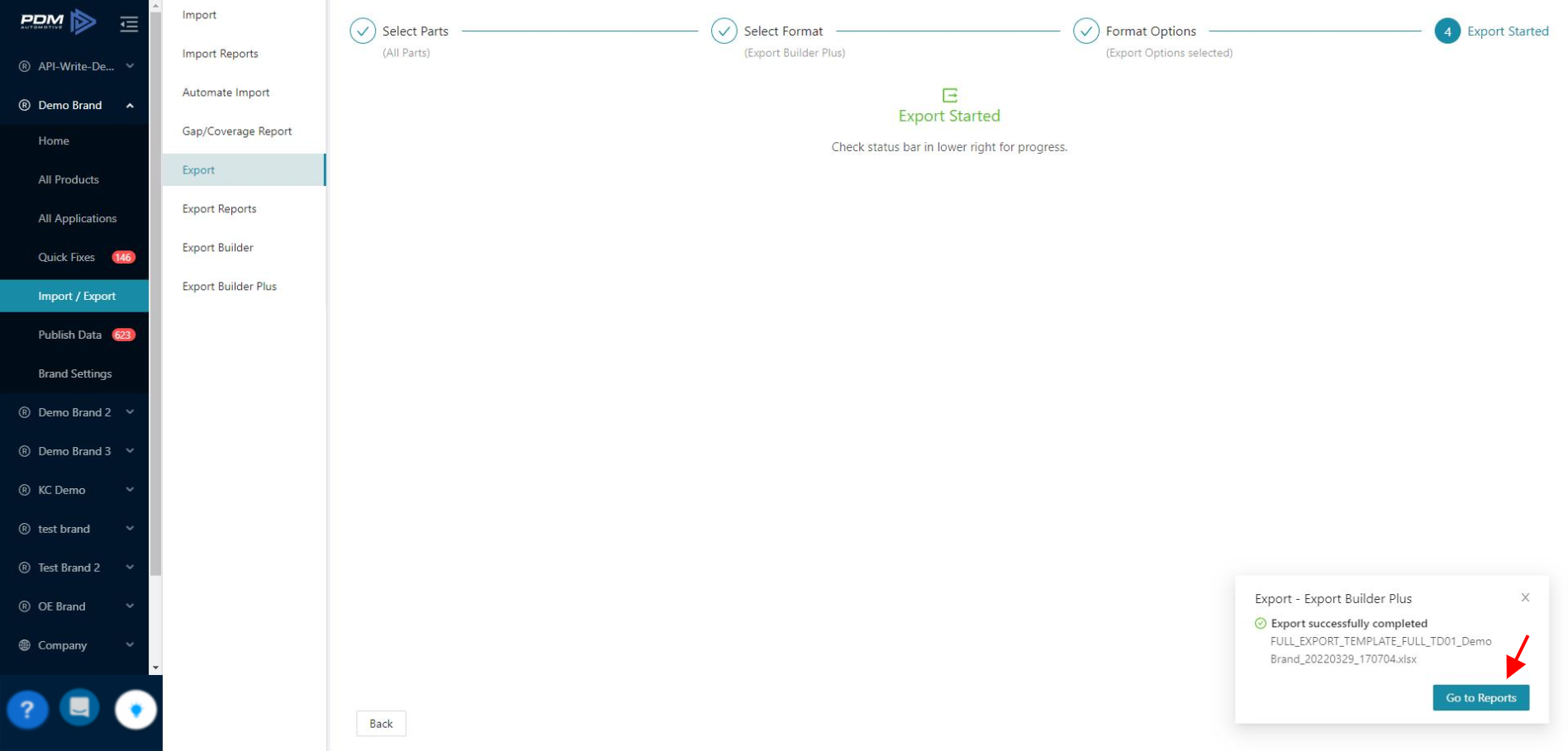

      11. Click in Export.


Access to Export Template from All Products

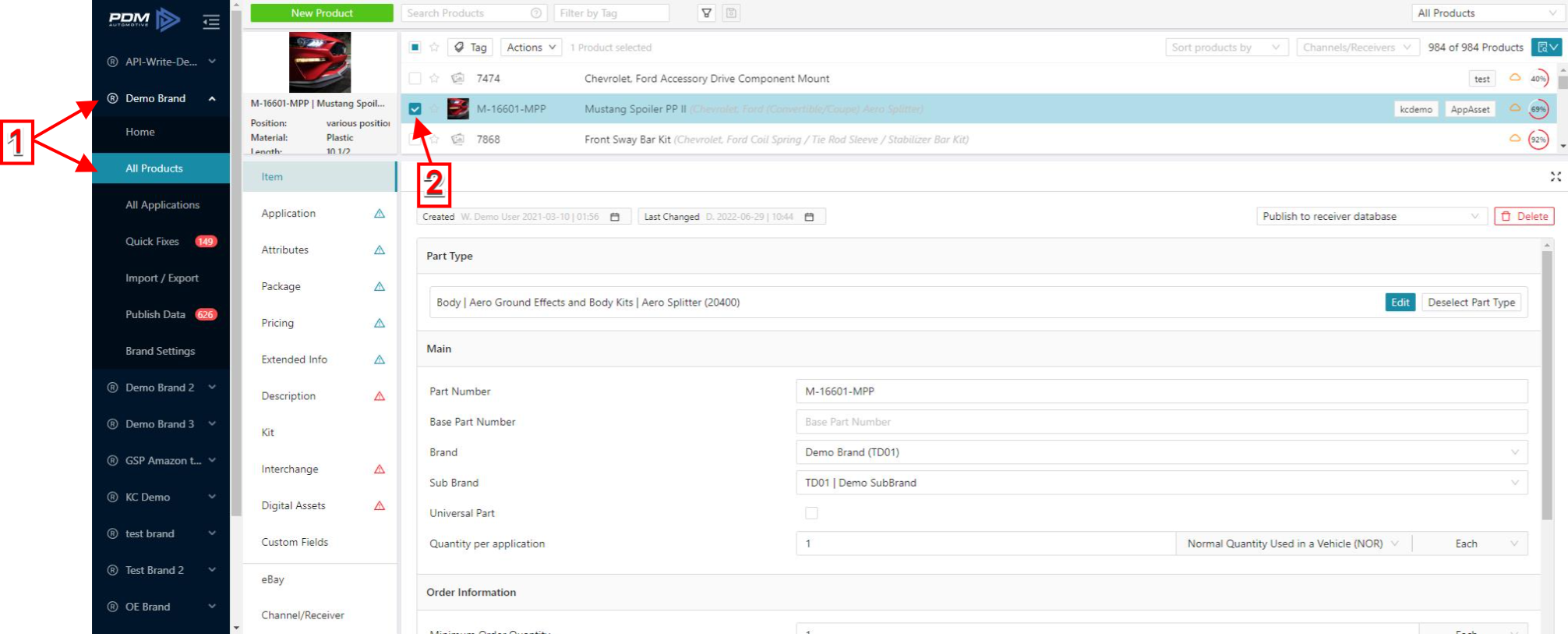

  1. Select a Brand from the main menu and click All Products.
  2. Select one or more product(s) from the catalog.

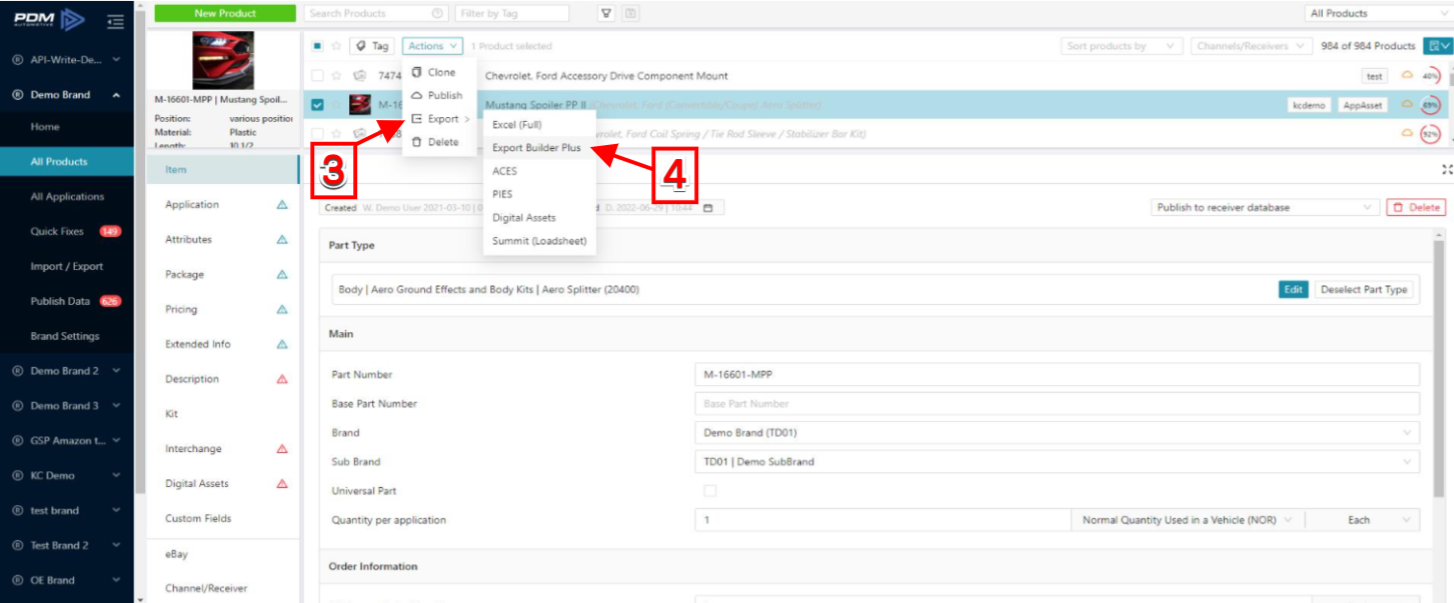

      3. Click on the Actions drop-down list and choose Export.
      4..  Click in Export Builder Plus.

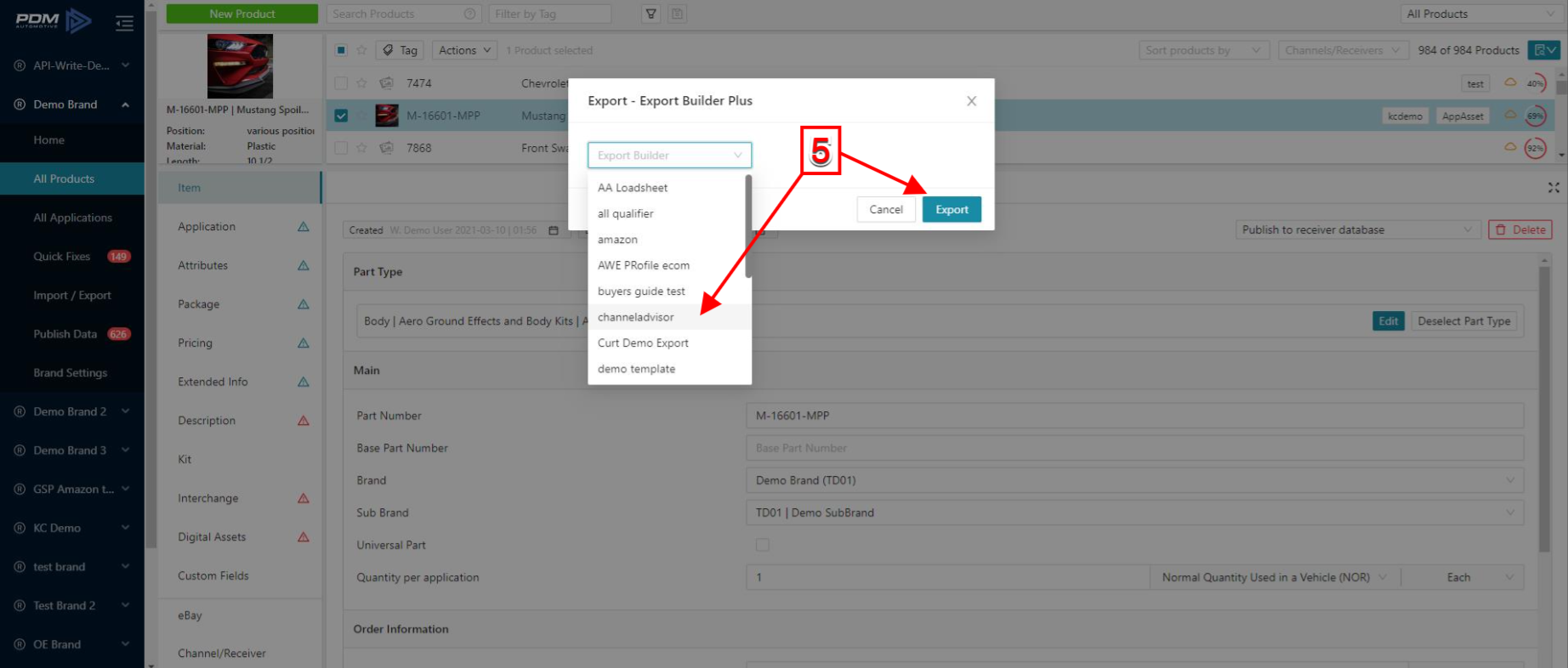

      5. Select a template from the drop-down list and click Export.
